RAPID TURNAROUND AND PRODUCT KNOWLEDGE
GET STARTEDPRODUCTS
PRODUCTS

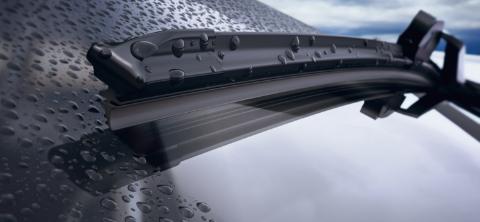

WIPER BLADES
We offer high-quality wiper blades designed to deliver clear visibility and dependable performance in all weather conditions. Whether you’re outfitting passenger vehicles, commercial fleets, or specialty equipment, our wiper blades are engineered for durability, easy installation, and maximum wiping efficiency.
PRODUCTS

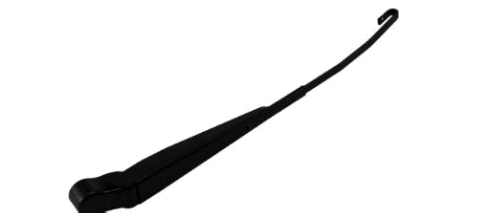

WIPER ARMS
Made from durable carbon steel with a matte black epoxy coating, DFS 4 Series Wiper Arms are built for DFS pivot shafts and tested to 500-hour salt spray resistance (ASTM B-117). Radial arms (11″–32″) offer standard or narrow saddles, wet or dry options, and 360° rotating heads. Pantograph arms (13″–32″) feature a 0.50″ saddle and require a mounting bracket. Both types meet J198 standards.
PRODUCTS

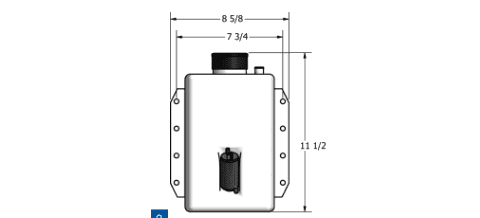

WASHER RESERVOIRS
Our washer bottles are made from durable High-Density Polyethylene (HDPE) and come in 70 oz, 140 oz, 3, 4, and 6 Qt sizes. The larger bottles feature snap caps, while the quart sizes include plastic spring caps with a metal spring. Easily convert any bottle for use with a remote fill spout and customize with additional pumps or fittings for multiple spray locations. Compatible with 12V or 24V pumps using spade terminals or Metri-Pack connectors (mates with Delphi 1205 2641).
PRODUCTS

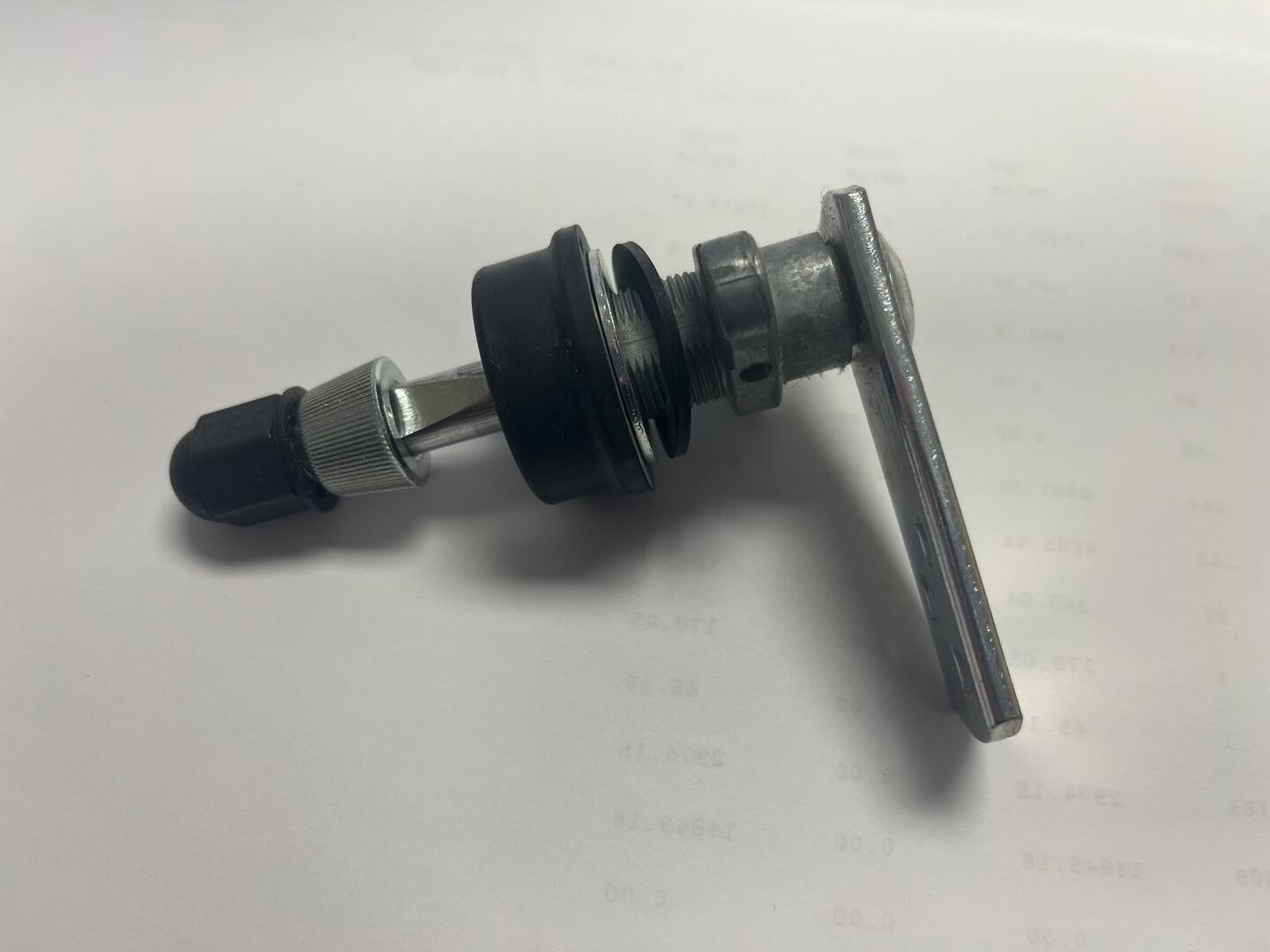

PIVOT SHAFT
Assemblies include acorn nut, lock washer, knurled driver, rain cap, nut, metal and rubber washers. Available in pin style shafts from 0.75″ to 4.50″ and ball stud levers from 2.000″ to 2.425″
PRODUCTS

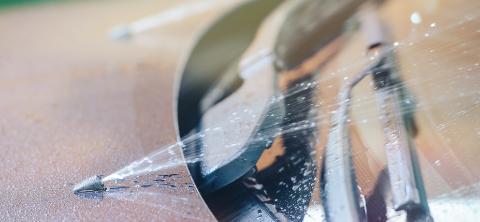

NOZZLES
Choose from durable single or dual jet brass nozzles in 2.90″ or 3.90″ lengths (1/2″ diameter). Wet Arm Kits include nozzle, tubing, clips, mounting nut, and screw for a complete installation.
PRODUCTS

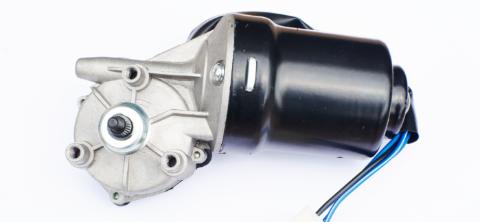

ELECTRIC MOTORS
Available in internal (WWF style, 10–12Nm) or external linkage (35Nm, 38Nm, 49Nm) options. All motors come in 12V or 24V with RFI suppression and wiring for Coast-to-Park or Dynamic Parking. Custom wiring harnesses and control modules are available, including dual motor synchronization, intermittent wiping, and ground-side switch conversion.
PRODUCTS

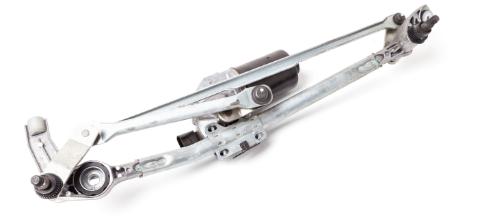

LINKAGE
Options include Drive Arm Double “D” styles with various A/B lengths, Pin Style arms in multiple sizes, Double Ball Stud (#52496), and Double “D” (#SD66-0051) configurations
PRODUCTS

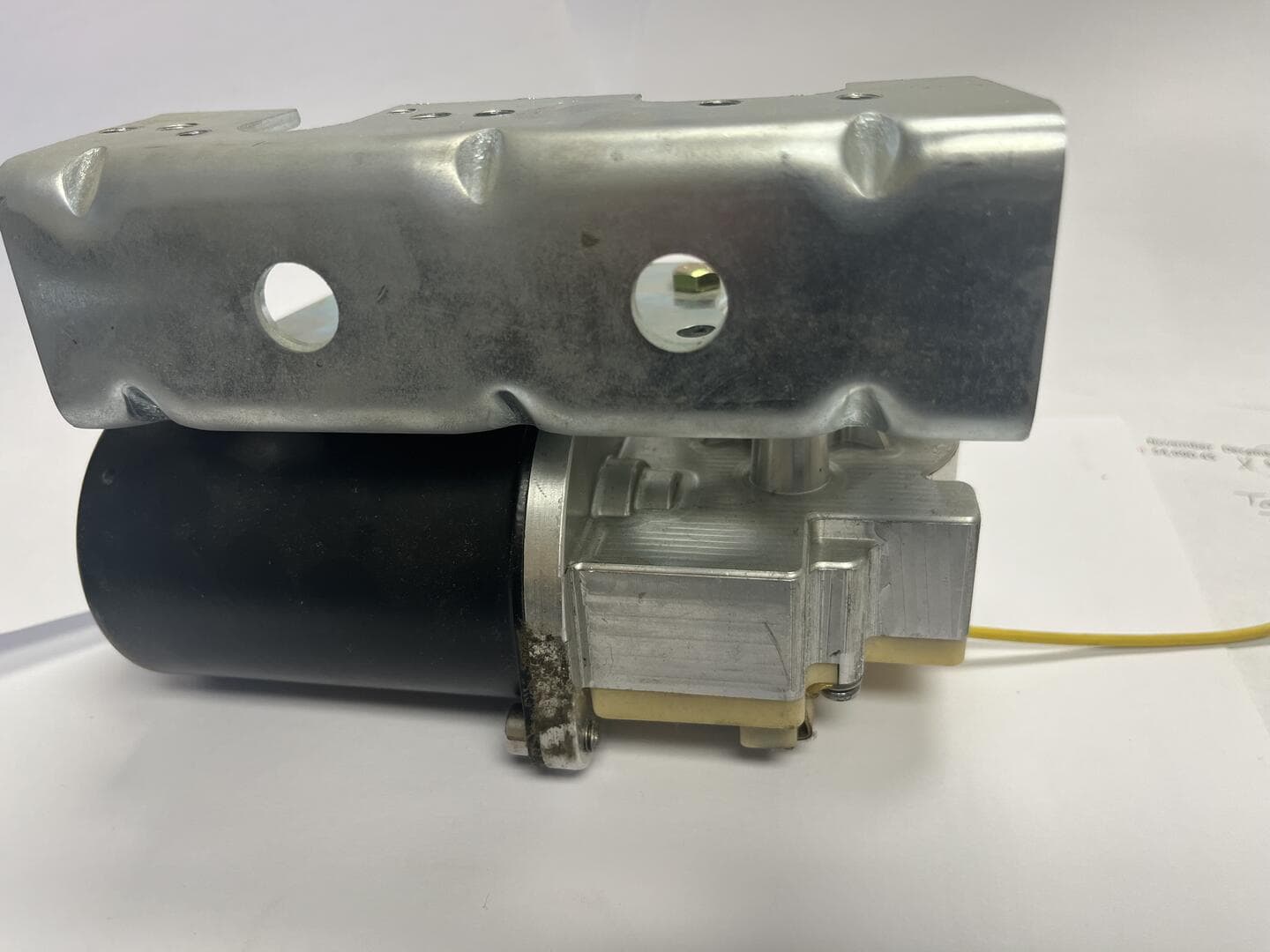

BRACKETS
Our custom brackets are designed to perfectly fit the interior of your cab for seamless integration with your windshield wiper system.
PRODUCTS
Pantograph Adapters
Includes rubber gasket, metal washer, and acorn nut for secure, reliable installation.
COMPLETE WINDSHIELD WIPER SYSTEM
Selecting the right system depends on factors such as glass size, mounting position, and the specific application. Additional considerations include whether to use a “wet system,” which includes a washer reservoir and tubing kit, or a “dry system,” which does not feature washing capabilities.
Troubleshooting Parts
Essential components to diagnose and fix issues like streaking, skipping, noise, or motor failure—ensuring clear visibility and smooth operation.
Motor System Description
A DC motor that powers wiper blades, clearing rain, snow, and debris by converting electrical energy into mechanical motion.
Wiper Components
A windshield wiper system's blade typically includes a metal arm, a rubber blade, and various connectors
About Us
At Cleveland Ignition, we specialize in developing custom wiper/washer systems and other electrical solutions tailored to your production requirements. Our experienced team works closely with you to design systems that meet your exact specifications. From CAD drawings for approval to in-house prototype development and testing, we ensure every step meets the highest standards.
Whether you need a full production run or individual systems delivered on demand, we offer the flexibility to support your workflow. Our local representatives are here to assist your team, helping streamline the new product development process and bring your ideas to life with efficiency and precision.
